HDPE Geocell
Welded honeycomb panels of HDPE strip that confine soil or aggregate for load support, slope protection and channel lining.
Overview

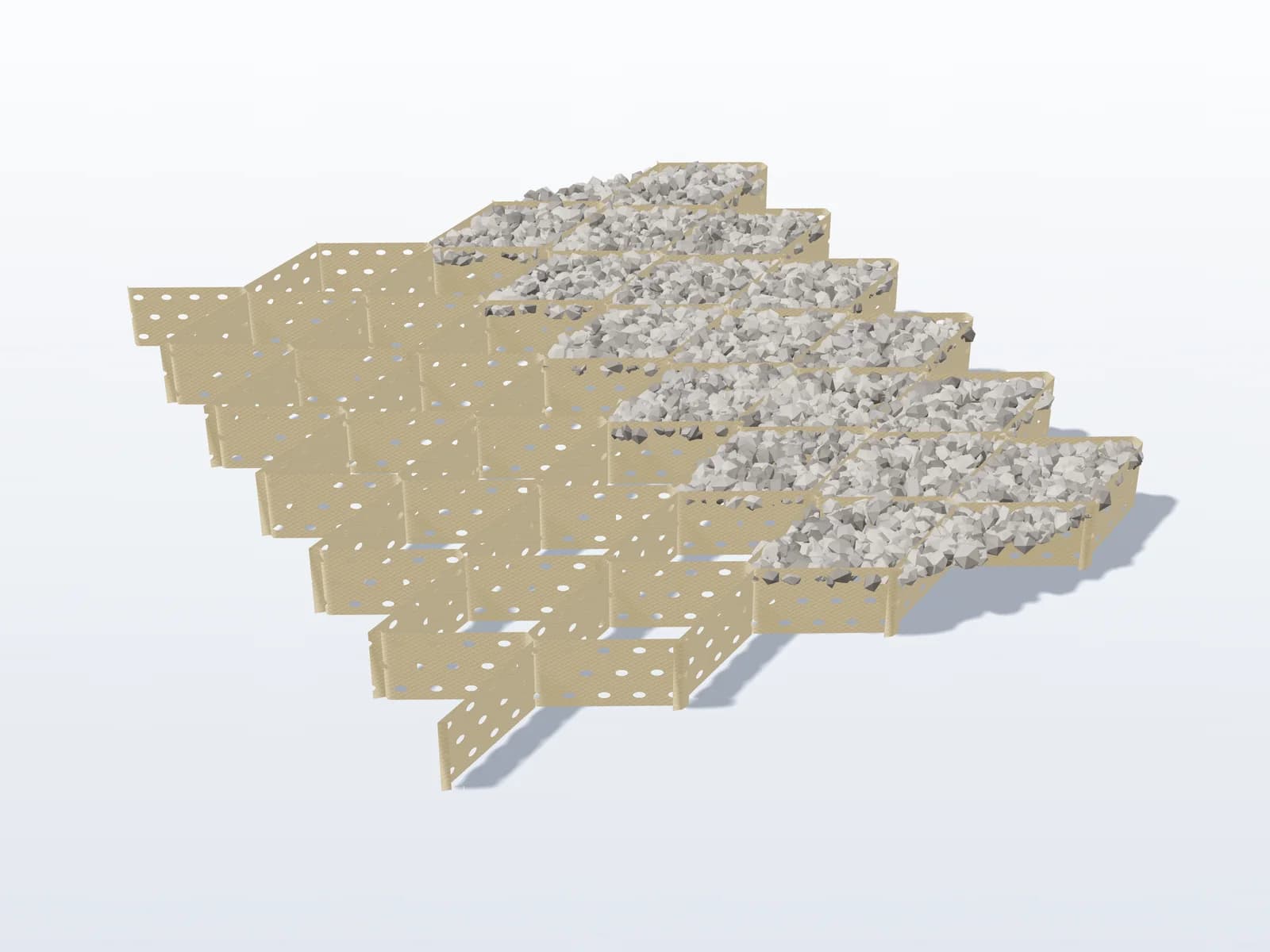

HDPE geocell is a honeycomb of polyethylene strips welded at regular intervals. It folds flat for transport and expands on site into a three-dimensional cellular mattress. Once filled with sand, aggregate or soil, or with concrete for channel lining, the cells confine the fill and spread loads, which allows thinner bases over weak ground and holds topsoil on slopes. Cell depths of 50 to 200 mm cover most road, slope and channel work.
Features
- Expands on site into a three-dimensional cellular structure
- Confines infill to spread loads and reduce settlement
- Folds flat for compact transport and storage
- Welded joints with a tested peel strength
- Works with soil, aggregate or concrete infill
- Five cell depths from 50 to 200 mm
Specifications
Swipe sideways to see every model.
| Property | Unit | Test method | GC50 | GC75 | GC100 | GC150 | GC200 |
|---|---|---|---|---|---|---|---|
| Cell depth | mm | – | 50 | 75 | 100 | 150 | 200 |
| Weld spacing | mm | – | 330 | 330 | 330 | 330 | 330 |
| Sheet thickness | mm | ASTM D5199 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 |
| Weld peel strength | N | ISO 13426-1 | ≥ 700 | ≥ 1050 | ≥ 1400 | ≥ 2100 | ≥ 2800 |
| Section size, expanded (W x L) | m | – | 2.5 x 5.6 | 2.5 x 5.6 | 2.5 x 5.6 | 2.5 x 5.6 | 2.5 x 5.6 |
Typical values. Contact us to confirm the specification for your project.
Applications
Need HDPE Geocell for your project?
Tell us the quantity and delivery location. We reply with a quotation and, where useful, the technical datasheet.
