HDPE Geomembrane

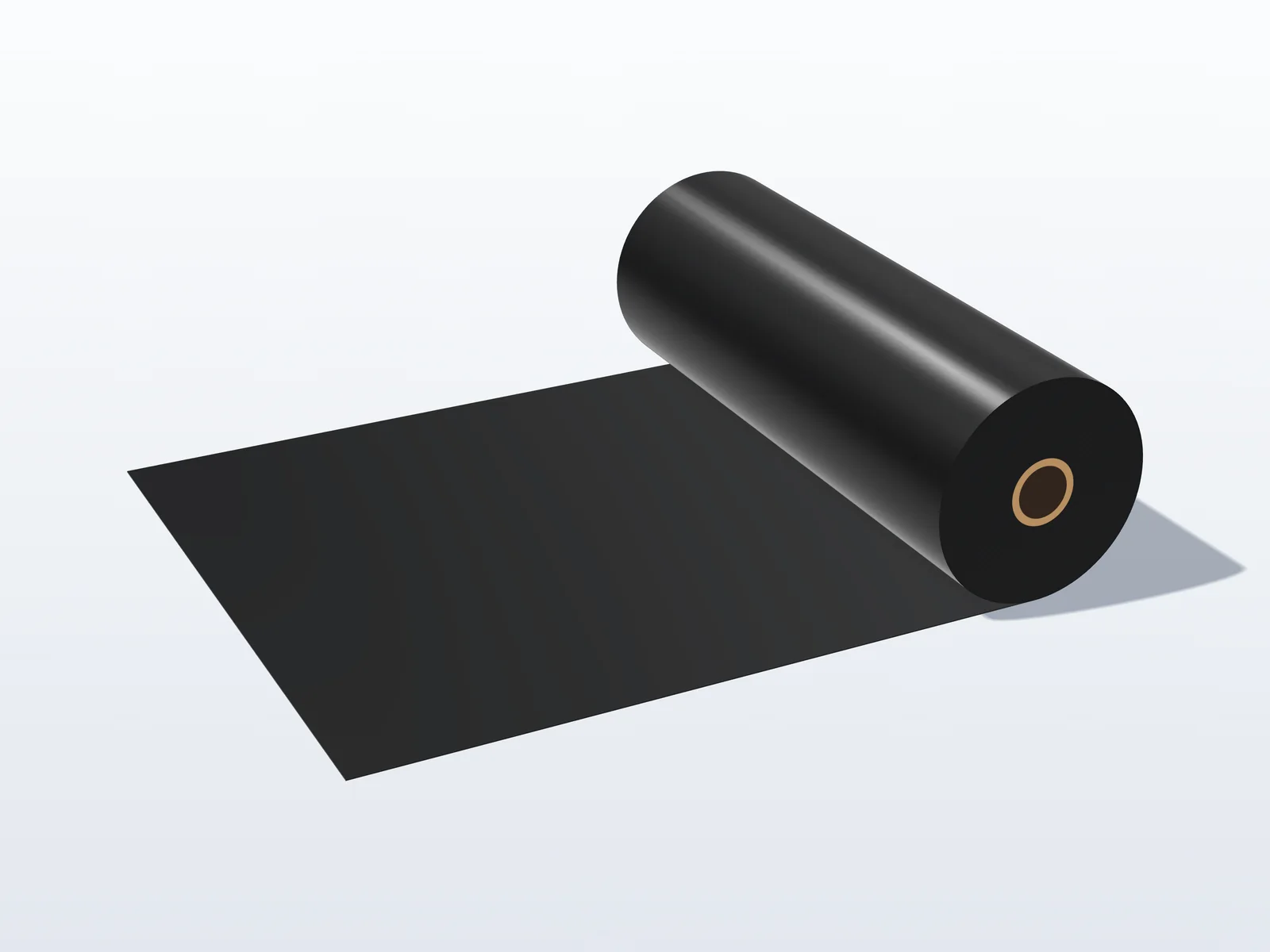

Smooth high-density polyethylene liner for landfills, ponds, canals and tanks, supplied from 0.5 mm to 2.0 mm thick.
Overview
Smooth HDPE geomembrane is extruded from high-density polyethylene resin with carbon black and antioxidant additives. It has very low permeability to liquids and gases, strong chemical resistance and good UV stability, which makes it a standard liner for landfills, mining ponds and water storage. Sheets are joined on site by hot-wedge or extrusion welding and the seams are tested before the liner is covered.
Features
- Very low permeability to liquids and gases
- Resistant to most acids, alkalis and landfill leachate
- Carbon black and antioxidant package for outdoor exposure
- High yield strength and puncture resistance
- Seamed on site by hot-wedge or extrusion welding
Specifications
Swipe sideways to see every model.
| Property | Unit | Test method | 0.5 mm | 0.75 mm | 1.0 mm | 1.5 mm | 2.0 mm |
|---|---|---|---|---|---|---|---|
| Thickness (nominal) | mm | ASTM D5199 | 0.50 | 0.75 | 1.00 | 1.50 | 2.00 |
| Density | g/cm³ | ASTM D1505 | ≥ 0.940 | ≥ 0.940 | ≥ 0.940 | ≥ 0.940 | ≥ 0.940 |
| Tensile strength at yield | kN/m | ASTM D6693 | ≥ 7 | ≥ 11 | ≥ 15 | ≥ 22 | ≥ 29 |
| Tensile strength at break | kN/m | ASTM D6693 | ≥ 13 | ≥ 20 | ≥ 27 | ≥ 40 | ≥ 53 |
| Elongation at yield | % | ASTM D6693 | ≥ 12 | ≥ 12 | ≥ 12 | ≥ 12 | ≥ 12 |
| Elongation at break | % | ASTM D6693 | ≥ 700 | ≥ 700 | ≥ 700 | ≥ 700 | ≥ 700 |
| Tear resistance | N | ASTM D1004 | ≥ 62 | ≥ 93 | ≥ 125 | ≥ 187 | ≥ 249 |
| Puncture resistance | N | ASTM D4833 | ≥ 160 | ≥ 240 | ≥ 320 | ≥ 480 | ≥ 640 |
| Carbon black content | % | ASTM D4218 | 2.0–3.0 | 2.0–3.0 | 2.0–3.0 | 2.0–3.0 | 2.0–3.0 |
| Roll size (W x L) | m | – | 7 x 300 | 7 x 200 | 7 x 150 | 7 x 100 | 7 x 75 |
Typical values. Contact us to confirm the specification for your project.
Applications
Need HDPE Geomembrane for your project?
Tell us the quantity and delivery location. We reply with a quotation and, where useful, the technical datasheet.
